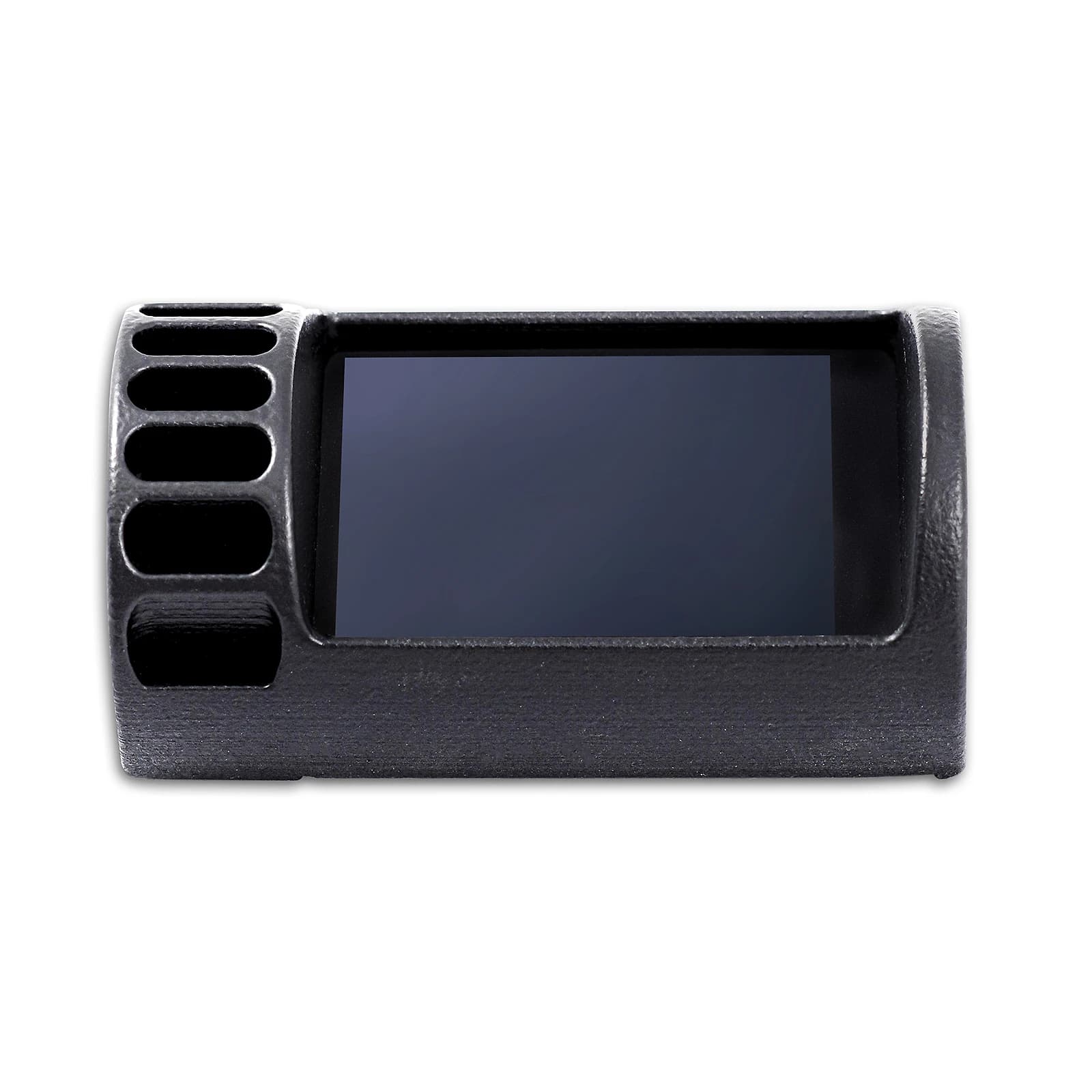

CANchecked MFD28 GEN 2 – 2.8" Display for BMW E30 (LHD/RHD)
548,99 €
Available to order — estimated delivery: approx. 1–2 weeks
Not held in stock at Ge-Tech Engineering. This item is ordered from our supplier after you place your order. Delivery may vary depending on supplier availability and customs clearance.
Questions about delivery times? Contact us and we will gladly help.
1
Precision Fit
Quality Checked
Delivery Estimates
Description
CANchecked MFD28 GEN 2 (CC34010) 2.8-inch capacitive touch display for the BMW E30 3 Series, LHD and RHD. The display mounts in a vehicle-specific vent insert and shows up to 128 values from freely programmable ECUs with CAN bus, and from many ECUs with a serial interface. Data is logged to the included 8 GB micro SD card while driving.
Technical specifications
| Manufacturer | CANchecked |
|---|---|
| Part number | CC34010 |
| Model | MFD28 GEN 2 |
| Screen | 2.8 inch capacitive touch display |
| Values displayed | Up to 128 |
| Display pages | Up to 10, freely configurable with widgets |
| Connection | CAN bus and serial interface |
| Inputs | 2 digital, 4 analogue (0–5 V sensors) |
| Logging | 8 GB micro SD card |
| Supply voltage | 12 V (5 V or 24 V optional) |
| Operating temperature | -10 °C to 70 °C |
| Mounting | Vehicle-specific vent insert, LHD and RHD |
Features
- Shift light function
- CAN bus switching
- Performance meter (for example 100–200 km/h)
- Individual minimum and maximum warning values with pop-up alerts
- Adjustable screen brightness
- Analogue inputs for sensors such as oil pressure, fuel pressure, boost pressure and exhaust gas temperature (with adapter)
What's included
- CANchecked MFD28 GEN 2 display in vehicle-specific vent insert
- Connector A (8-way Molex) and connector B (10-way Molex)
- Pre-assembled connection cables and crimp pins
- 2x 1K pull-up resistor (for NTC sensors)
- 8 GB micro SD card and SD card adapter
- USB data cable
- Anti-reflective display film
- Fixing screws and quickstart guide
Fitment
BMW E30 3 Series, left-hand and right-hand drive. The display needs an ECU or data source with a CAN bus or supported serial interface. Configuration is done with CANchecked's Display Setup Software or directly on the touch screen.
